Sliding pit door
Box sliding gate
Space-saving functionality. Elegant. Smooth-running.
Elegant sliding door with innovative integrated drive technology and easily movable aluminium leaf. For plenty of freedom of movement in the car park.
With the sliding box door from Käuferle, parking spaces can be utilised without restriction and at full height. The offset sliding doors with integrated drive technology offer a compact solution that gives every multi-storey car park an elegant appearance. As an option, specially plastic-coated rollers ensure exceptionally quiet door operation.
Sliding box door - unique values
space-saving
Operator technology and door leaves are located outside the parking space, which therefore remains fully usable
Elegant
Elegantly moving appearance in the collective garage thanks to offset door leaves
Colours and surfaces
When building the doors, we focus entirely on your ideas so that you can perfectly match all surfaces and colours of door panels to your collective garage. Our infill panels are available in three categories: standard, functional and premium. The frame, fittings and door leaf frame are all made of galvanised steel. For standard E6/EV1 anodised aluminium doors, the door leaf and covering can be supplied in the colour of your choice. The choice is yours.
Standard
Our standard infills are available in two variants: as galvanised welded steel mesh and as E6/EV1 anodised aluminium square tubes. The SG variant complies with all country-specific fire protection regulations.
Steel welded mesh 100/100/4
SG variant
Aluminium square tube 20/20
Variant QR
Function
The infills of the Function variants are galvanised as standard.
Steel beaded plate
Variant SB
Steel corrugated sheet with diamond perforations
SBR variant
Steel corrugated sheet with round perforations
Variant SBL
Premium
In addition to the variants in E6/EV1 anodised aluminium presented below, individual RAL colours are also available on request and for a small surcharge. Special fillings such as glass or façade panels can also be realised.

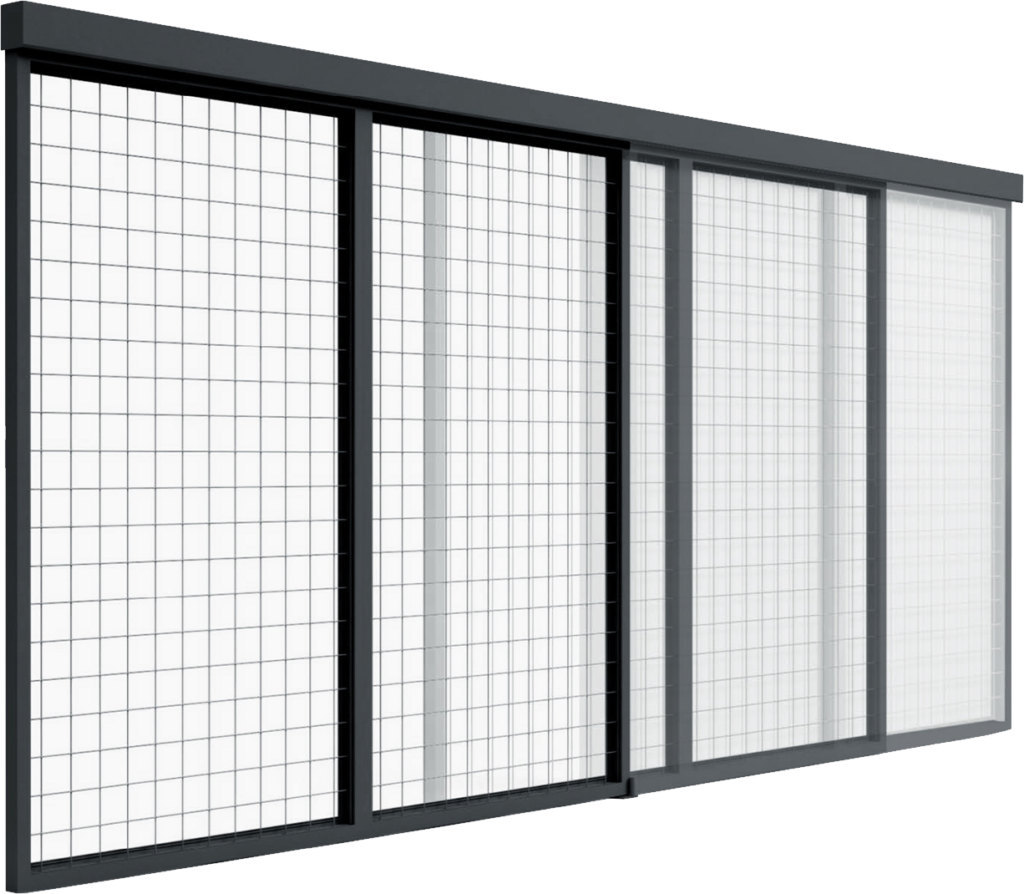

Smooth aluminium sheet
GB variant
Aluminium square-perforated sheet QG 20/50
Variant QG
Aluminium round perforated sheet RV 5/8
RV variant
Technical details
Our doors can be adapted to a wide variety of installation situations and fitted with a wide range of accessories.
To make it easier for you to plan your individual door, we have summarised the most important installation dimensions and components here:
KÄUFERLE WORKBOOKS
In our Käuferle Workbooks, we offer architects, planners and builders an overview of our diverse product range and our comprehensive services. So that you are always well informed.
KÄUFERLE GARAGE DOOR SERVICE
Käuferle offers an all-round door service for the maintenance and repair of collective garage doors throughout Germany. With specially trained specialists and original spare parts. So that your door always runs smoothly.
Newsletter
Would you like to receive regular information about our products, offers and events? Then sign up for our newsletter.
- Products
Käuferle GmbH & Co. KG
Robert-Bosch-Str. 4
D-86551 Aichach 1
Route
We are here for you!
*Compulsory field
Käuferle tender texts
FAQs
Garage doors
When will my gate be put into operation?
Please contact our customer service when all preliminary work (such as laying the cables) has been completed and the gate area can be walked on freely. We will then arrange an individual appointment with you.
Which cables does the electrician have to lay for my new door?
After your door system has been approved, you will receive a cable routing plan tailored to your order. This plan shows all the cables that the electrician you have commissioned will need in order to carry out all the work.
Do I have to carry out maintenance on my gate system?
Prüfungen und Wartungen von Toranlagen sind in Deutschland gesetzlich geregelt. Jedoch ist vielen Betreibern von Toranlagen nicht bewusst, dass sie diese Verantwortung haben.
Gerne unterbreiten wir ihnen ein Angebot über eine einmalige Wartung oder einen Wartungsvertrag. Ihre Toranlage wird dann von unseren sachkundigen Monteuren einmal jährlich gewartet.
Where can I get spare parts for my garage door?
Gate systems are subject to heavy stress through daily use, which can result in wear and tear. Due to the simple and clear structure, some parts can be replaced quickly. Our customer service will be happy to help you. You can reach us at 0180 3900505 or under service@kaeuferle.de.
The emergency stop button is missing from my new gate system. Has this been forgotten?
Due to defined exceptions in the standards and guidelines, an emergency stop command device is not mandatory for our door systems, which of course comply with the latest state of the art.
After 15 years of continuous operation, one of the torsion springs on our gate is defective.
Do both springs have to be replaced now?
Do both springs have to be replaced now?
Bitte ersetzen Sie beide Federn.
Die Federn werden für festgelegte Lastwechsel berechnet. Wenn eine Feder reißt, steht auch die zweite Feder unmittelbar vor der berechneten Bruchgrenze und sollte daher ersetzt werden. Unser Kundendienst-Team kann Ihnen auf Wunsch die nötigen Ersatzteile anbieten bzw. die Reparatur der Toranlage durchführen.
Partition systems
Do you also supply the locking cylinders for the UTS doors or which cylinder type is installed?
We will be happy to supply you with a locking cylinder for each door. However, this is not integrated into the locking system of your building.
If you prefer a cylinder that matches the locking system, you will need a half cylinder in size 10/30 for our UTS doors with a PZ handle and a half cylinder in size 30/60 for doors with a lever handle set.
Not found what you are looking for?
Our customer service will be happy to help you.
You can reach us at 0180 3900505 or under service@kaeuferle.de.
You can reach us at 0180 3900505 or under service@kaeuferle.de.
Downloads
Products
SERVICE
Administrative documents
- Customer service travel flat rate (PDF)
- Commercial Register A (PDF)
- Commercial Register B (PDF)
- Chamber of Crafts (PDF)
- Health insurance AOK (PDF)
- Health insurance Audi BKK (PDF)
- Barmer Health Insurance (PDF)
- DAK Health Insurance (PDF)
- Health insurance mhplus (PDF)
- Health insurance MOBIL (PDF)
- TK Health Insurance (PDF)
- Public liability insurance (PDF)
- Employer's Liability Insurance Association (PDF)
- Tax liability (PDF)
- Certificate of exemption (PDF)
- Sector minimum wage (PDF)
- SOKA (PDF)
- RAL Quality Mark Windows (PDF)
Kontakte
Vertrieb für Tore, Trennsysteme und Einhausungen
Vertriebsbüro Nord-Ost
- Göhrener Str. 14a
- 10437 Berlin
Sales Office West
- Aleksandar Trajkov
- Max-Eyth-Str. 17 a
- 46149 Oberhausen
Sales Office East
- Uwe Fischer
- Zschopauer Str. 105
- 09126 Chemnitz
Vertriebsbüro Rhein-Main 1
- Günther Krapp
- Aschaffenburger Str. 62
- 64832 Babenhausen
Vertriebsbüro Rhein-Main 2
- André Hartmann
- Aschaffenburger Str. 62
- 64832 Babenhausen
Vertriebsbüro Baden-Würtemberg
- Konstantinos Outziolas
- Fabrikstr. 70
- 71522 Backnang
Vertriebsbüro Bayern-West
- Maximilian Wood
- Robert-Bosch-Str. 4
- 86551 Aichach
Vertriebsbüro München
- Wilfried Englhard
- Robert-Bosch-Str. 4
- 86551 Aichach
Vertriebsbüro Bayern-Ost
- Heiko Schendel
- Robert-Bosch-Str. 4
- 86551 Aichach
Niederlassung Österreich
- KÄUFERLE.AT GmbH
- Eisenfeld Road 27
- A-4600 Catfish
Vertriebsbüro Schweiz
- Käuferle GmbH & Co. KG
- Robert-Bosch-Str. 4
- D-86551 Aichach
Vertriebsbüro Polen
- Käuferle GmbH & Co. KG
- Robert-Bosch-Str. 4
- D-86551 Aichach
Vertrieb für Fenster und Türen
Central Internal Service Resale
Baden-Würtemberg & Bayern
Baden-Würtemberg & Bayern
- Aichach plant
- Robert-Bosch-Str. 4
- D-86551 Aichach
Tor-Service
Servicestützpunkt Rhein-Main
- Aschaffenburger Str. 62
- 64832 Babenhausen
Servicestützpunkt Bayern
- Robert-Bosch-Str. 4
- D-86551 Aichach
Aichach plant
Käuferle GmbH & Co. KG
- Robert-Bosch-Str. 4
- D-86551 Aichach

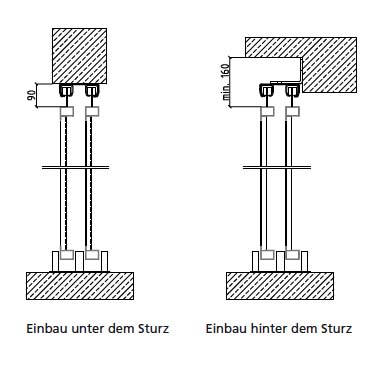

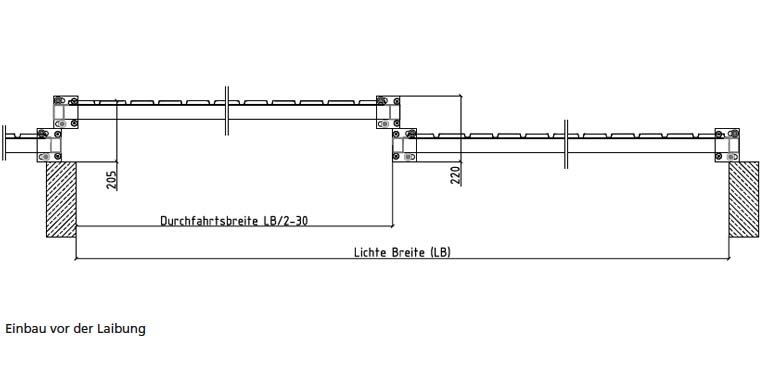

Installation data for sliding box door

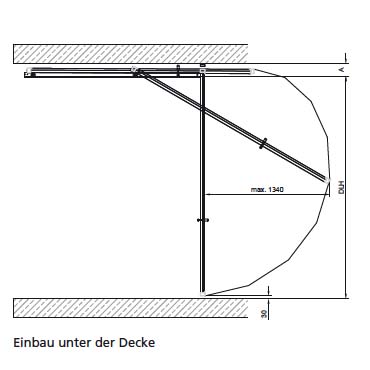

Installation data for overhead door
TYPE N
Up to 3010 mm width
Space requirement under ceiling/beam max. 135 mm
TYPE VS
From 3010 mm width
Space requirement under ceiling/beam max. 170 mm

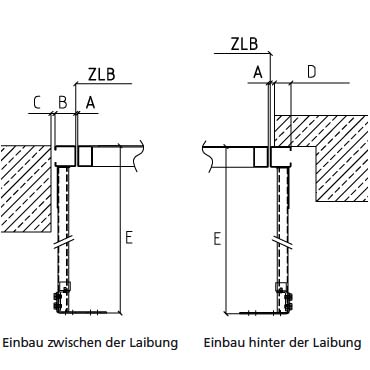

| Cuts/dimensions | |||
|---|---|---|---|
| Type N | Type VS | ||
| A | 5 | 8 | |
| B | 50 | 80 | |
| C | 10 | 10 | |
| D | max. 40 | max. 70 | |
| E | ca. 1930 | ca. 2010 | |
Parking box components
GATE DRIVE
Operation with hand-held transmitter; safety due to power cut-off; emergency release in the event of power failure from inside and outside; automatic light switch-on; plug-in 230 V mains connection. The maintenance-free and, thanks to the toothed belt used, low-noise door operator can also be retrofitted.
Radio control
Radio control as single or multi-channel control 40/433 MHz, freely encodable, consisting of a radio receiver and any number of hand-held transmitters
Key switch
Consisting of a robust aluminium housing and a built-in key switch with aluminium cover plate, prepared for the installation of a profile cylinder (half cylinder 10/30)
Sound insulation
Vibration-damping mounting of the door frame, tracks and operator using special dowels. This reduces noise and vibration transmission.
© 2020 Käuferle GmbH & Co KG
DRIVES
SWITCH
TAXES
DOORS
Drive K 120 RV/GV
low-noise ceiling hoist drive, 230 volts: with toothed belt and adjustable push rod, soft start and soft stop, electronic power cut-off and integrated radio receiver - including securing of the main closing edges by opto-sensor strip as well as optional emergency stop button near the door.
Operator KFU 125 RV/GV for overhead door NA perfect
Low-noise and robust ceiling hoist drive, 230 volts: with frequency converter, transverse steel roller chain, soft start and soft stop - including protection of the main and secondary closing edges by opto-sensor strip as well as optional emergency stop button near the door.
